Product Summary

The J0026D21BNL is a 10/100 Base-TX RJ45 1x1 Tab-DOWN with LEDs 8-pin (J0 series) integrated magnetics connector (ICM), designed to support applications, such as SOHO (ADSL modems), LAN-on-Motherboard (LOM), Hub and Switches.

Parametrics

J0026D21BNL absolute maximum ratings: (1)Mating Force (MAX): 5 lbs./2.268 kgs; (2)Unmating Force(MAX): 5 lbs./2.268 kgs; (3)Plug to Jack Retention (MIN): 20 lbs./9.072 kgs; (4)Durability: 750 Insertions

Features

J0026D21BNL features: (1)RoHS peak wave solder temperature rating 260°C ; (2)Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP; (3)Meets or exceeds IEEE 802.3 standard for 100Base-T ; (4)350 μH minimum OCL with 8mA bias current ; (5)Minimum 1500Vrms isolation per IEEE 802.3 requirement.

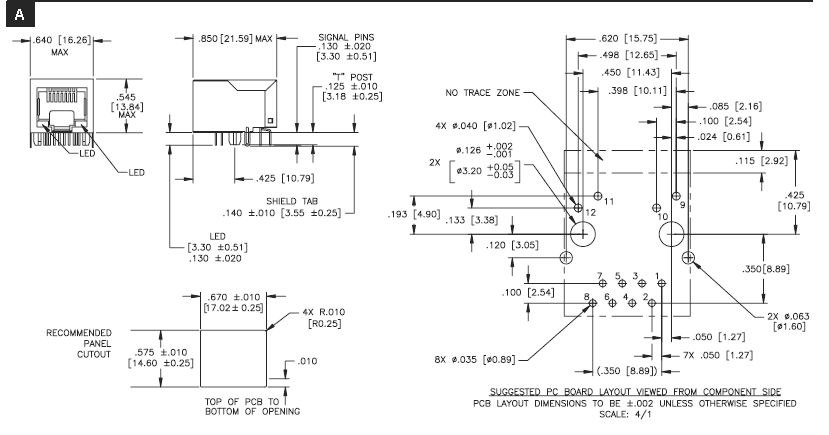

Diagrams

J0026D21BNL block diagarm

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
J0026D21BNL
J0026D21BNL
Pulse
Ethernet & Telecom Connectors 1X1 TAB DOWN W/LEDS
Data Sheet
0-1: $4.73
1-10: $3.71
10-100: $3.08
100-500: $2.54
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
J0026D01
J0026D01
Pulse
Ethernet & Telecom Connectors 1X1 TAB DOWN 10/100
Data Sheet
0-1: $4.32
1-10: $3.60
10-100: $2.70
100-500: $2.22
J0026D01BNL
J0026D01BNL
Pulse
Ethernet & Telecom Connectors FILTERED CONN
Data Sheet
0-1: $4.73
1-10: $3.71
10-100: $3.08
100-500: $2.54
J0026D01FNL
J0026D01FNL
Pulse
Ethernet & Telecom Connectors LEADED SINGLE PORT
Data Sheet
0-76: $4.20
76-100: $3.15
100-500: $2.59
500-1000: $2.45
J0026D21BNL
J0026D21BNL
Pulse
Ethernet & Telecom Connectors 1X1 TAB DOWN W/LEDS
Data Sheet
0-1: $4.73
1-10: $3.71
10-100: $3.08
100-500: $2.54
J0026D21F
J0026D21F
Pulse
Ethernet & Telecom Connectors 1X1 TAB DOWN W/LEDS 10/100
Data Sheet
0-1: $5.09
1-10: $4.24
10-100: $3.18
100-500: $2.62
J0026D21FNL
J0026D21FNL
Pulse
Ethernet & Telecom Connectors 1X1 TAB DOWN W/LEDS
Data Sheet
0-94: $3.41
94-100: $2.78
100-500: $2.54
500-1000: $2.36
