Product Summary
The JK0654219NL is a 10/100 Base-TX RJ45 1x1 Tab-DOWN with LEDs 8-pin (J0 series) integrated magnetics connector (ICM), designed to support applications, such as SOHO (ADSL modems), LAN-on-Motherboard (LOM), Hub and Switches.
Parametrics
JK0654219NL absolute maximum ratings: (1)Mating Force (MAX): 5 lbs./2.268 kgs; (2)Unmating Force(MAX): 5 lbs./2.268 kgs; (3)Plug to Jack Retention (MIN): 20 lbs./9.072 kgs; (4)Durability: 750 Insertions
Features
JK0654219NL features: (1)RoHS peak wave solder temperature rating 260°C ; (2)Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP; (3)Meets or exceeds IEEE 802.3 standard for 100Base-T ; (4)350 μH minimum OCL with 8mA bias current ; (5)Minimum 1500Vrms isolation per IEEE 802.3 requirement.

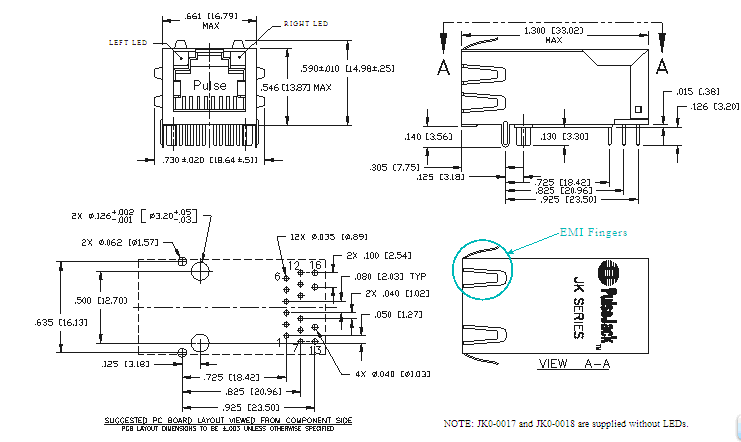

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 JK0654219NL |
Pulse |
Ethernet & Telecom Connectors RJ-45 8Pos 2.03mm 16Term. 1Port |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
JK0654219 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
JK0654219NL |
Pulse |
Ethernet & Telecom Connectors RJ-45 8Pos 2.03mm 16Term. 1Port |
Data Sheet |
|
|
||||||||||||
