Product Summary

The J0011D21BNL is a 10/100 base-TX RJ45 1x1 tab-down with LEDs 8-pin integrated magnetics connector (ICM).

Parametrics

J0011D21BNL absolute maximum ratings: (1)Electrical Specifications @ 25℃, Operating Temperature: 0℃ to +70℃; (2)Common mode rejection: -30 to -20dB.

Features

J0011D21BNL features: (1)RoHS peak wave solder temperature rating 260℃; (2)Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP; (3)Meets or exceeds IEEE 802.3 standard for 100Base-T; (4)350 μH minimum OCL with 8mA bias current; (5)Minimum 1500Vrms isolation per IEEE 802.3 requirement.

Diagrams

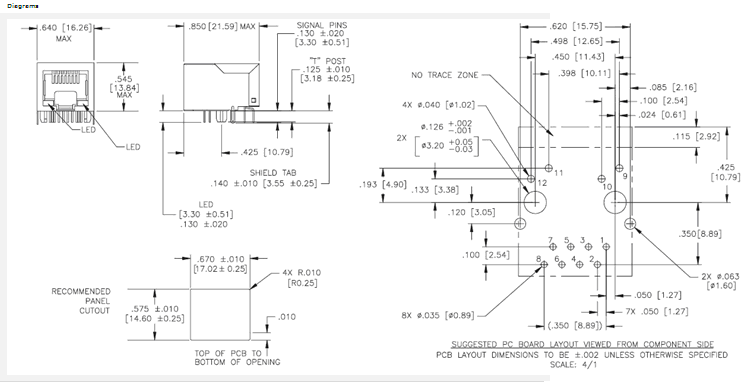

J0011D21BNL block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
J0011D21BNL
J0011D21BNL
Pulse
Ethernet & Telecom Connectors LEADED SINGLE PORT
Data Sheet
0-1: $4.61
1-10: $3.90
10-100: $3.01
100-500: $2.58
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
J0010D11
J0010D11
Pulse
Ethernet & Telecom Connectors 1X1 TAB DOWN 10/100
Data Sheet
Negotiable
J0010D11NL
J0010D11NL
Pulse
Ethernet & Telecom Connectors 1X1 TAB DOWN 10/100
Data Sheet
Negotiable
J0011D01
J0011D01
Pulse
Ethernet & Telecom Connectors 1X1 TAB DOWN 10/100
Data Sheet
0-1: $4.81
1-10: $4.01
10-100: $3.01
100-500: $2.48
J0011D01B
J0011D01B
Pulse
Ethernet & Telecom Connectors 1X1 TAB DOWN W/LEDS 10/100
Data Sheet
0-1: $6.25
1-10: $5.21
10-100: $3.11
100-500: $3.07
J0011D01BNL
J0011D01BNL
Pulse
Ethernet & Telecom Connectors 1X1 TAB DOWN W/LEDS
Data Sheet
0-1: $4.61
1-10: $3.90
10-100: $3.01
100-500: $2.48
J0011D01NL
J0011D01NL
Pulse
Ethernet & Telecom Connectors 1X1 TAB DOWN 10/100
Data Sheet
0-1: $4.43
1-25: $3.22
25-100: $2.89
100-500: $2.40
