Product Summary

The EB2-5NU-L is a miniature signal relay. It is suitable for surface mounting with infrared soldering (lRS) and vapor phase soldering (VPS). The EB2-5NU has three variations of high solder joint reliability type, and low profile type. The applications of the EB2-5NU include Electronic switching systems, PBX, key telephone systems, automatic test equipment and other electronic equipment.

Parametrics

EB2-5NU-L absolute maximum ratings: (1)Maximum switching power: 30W; (2)Maximum switching voltage: 220V; (3)Maximum switching current: 1A; (4)Maximum carrying current: 2A; (5)Minimum carrying ratings: 10mV, 10mA; (6)Initial contact resistance: 50mΩ typ.; (7)Contact material: Silver alloy with gold overlay; (8)Nominal operating Power Non-latch type and double coil latch type: 140mW (3V to 12V); 200mW (24V); (9)Operate time (excluding bounce): Approximately 2 ms without diode; (10)Insulation resistance: 1000MΩ at 500Vdc; (11)Ambient temperature: –40℃ to 85℃; (12)Weight: Approximately 1.5 grams.

Features

EB2-5NU-L features: (1)Compact and lightweight : 7.5mm×14.3mm×9.3mm, 1.5g; (2)2 form c contact arrangement; (3)Low power consumption; (4)Low magnetic interference; (5)Breakdown voltage: 1 000 VAC (surge voltage 1 500V), FCC Part 68 conformable; (6)UL recognized (E73266), CSA certified (LR 46266); (7)Lineup in non-latch, single-coil latch and double-coil latch types; (8)Lineup in minimum footprint (9.3×14.3), and high solder joint reliability (20 years) types; (9)Lineup in low profile type (hight: 6.5mm), and Ultra low profile (hight: 5.6mm).

Diagrams

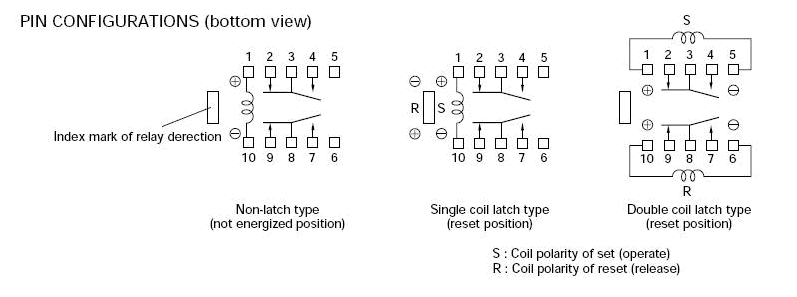

EB2-5NU-L block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EB2-5NU-L
EB2-5NU-L

NEC

Low Signal Relays - PCB 5VDC NON-LATCH

Data Sheet

0-750: $1.18
750-1000: $1.02
1000-2500: $0.89
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EB2-12
EB2-12

Other


Data Sheet

Negotiable
EB2-12NU
EB2-12NU

NEC

Low Signal Relays - PCB 12VDC NON-LATCH

Data Sheet

0-1: $1.60
1-25: $1.48
25-50: $1.36
50-100: $1.22
EB2-12NUH
EB2-12NUH

NEC

Low Signal Relays - PCB SMT 1A 12VDC 10PSOIC

Data Sheet

Negotiable
EB2-12NUL
EB2-12NUL

NEC

Low Signal Relays - PCB 12VDC NON-LATCH

Data Sheet

0-750: $1.23
750-1500: $1.06
1500-3000: $0.91
3000-5250: $0.86
EB2-12SNU
EB2-12SNU

NEC

Low Signal Relays - PCB DPDT 12V SNGL COIL

Data Sheet

0-1: $1.85
1-25: $1.71
25-50: $1.57
50-100: $1.43
EB2-12TNU
EB2-12TNU

NEC

Low Signal Relays - PCB 12VDC NON-LATCH

Data Sheet

0-80: $1.78
80-100: $1.60
100-500: $1.33
500-1000: $1.24
